Thursday, August 13, 2020

Heller 1/72 PZL P11c Polish Fighter


another one of those dusty models I re-found during the lockdown

       This is hardly a review (although I understand that this kit is still in production). This model has been around since the late 70s/early 80s. It is an excellent kit and is of an aircraft that I have always liked. This is pretty much just a walk-through of the build. This would be an excellent subject for an early-war air combat game like Check Your Six.

box with contents, even after forty years the decals look pretty good


the instructions border on terrible making assembling the cockpit details a bit dodgy
but the parts fit of the fuselage and engine was very good

the cowling on the engine was another matter.....

....there was no way that the parts were going to line up

after a while I just gave up and accepted that there would be filler involved

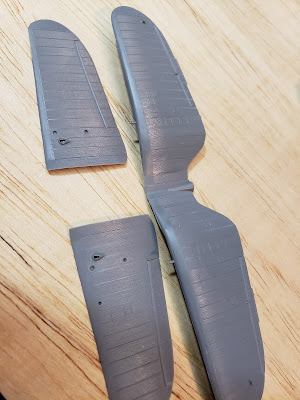

the wings on the other hand fit beautifully

the surface detail was top-notch

much putty and even more sanding

at first I thought that the fuselage shape was off, but I checked photos and it is good,
 the whole design idea of this aircraft was provide the pilot with the best overall vision,
 that is why the  gull-wing was used, the pilot saw the wing edge-on
 thus obscuring less of the sky around him


the landing gear are accurately in-scale and terrifyingly fragile
the wing struts are equally thin but the wing is very sturdy
 so there is little to worry about there

the only real issue with the fuselage fit was the lower seam, it was recessed below
the rest of the surface and needed sanding to bring it back to round

the landing gear struts are less than 1/32" thick!!!

once the glue had dried I added the wheels and gave it a try

the model captures the original very well

from checking photos I discovered that there were wire supports to the landing gear,
I will be adding them  just to ease my mind

all that is left is to paint it, sadly the color scheme is overall olive
with light blue on the bottoms of the wings and control surfaces


a neat little model of an underrated aircraft

trying to nail down the colors was a difficult matter,
photos are black and white and illustrations show the upper surfaces
 everything from bright green to a very brown olive.......

....in the end I went with the easy option; Testors spray Olive Drab

the underside got a coat of white to kill the olive and then a coat of Americana Sky Blue

it seemed a good match, after all was dry I gave the entire model a coat of Future floor wax
to get a gloss surface for the decals

the decals worked fine despite being thirty-five plus years old

but then I put Solvaset on top of them .....

....and suddenly they all looked like a ninety-year-old prune!

edges began to curl

the center of one underwing decal developed these cracks

only constant coaxing with a damp brush kept the edges from curling right up

unfortunately I ended up with some silvering on the edges

after almost an hour's worth of remedial care the decals almost were back to normal
and I could shoot the model with Vallejo flat

it turned out OK, but I won't be using the Solvaset on any thin decals in the future

yes, the upper wing markings were offset to the left like that

I always liked this plane for its cool shape

I am really unhappy about the decal problems,
 fortunately I have another copy of this kit and I can try again

the decals slid off the backer without any hint of trouble,
I can't account for the cracking after the Solvaset was applied
